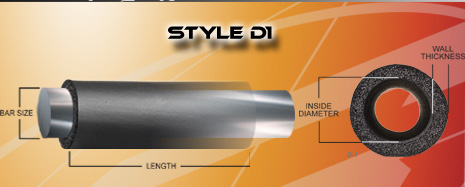

grip-tek fit guide for style d1 foam tubing
D1 Style foam tubing is available in epdm foam, npvc foam, or tpr and has a skin surface with straight cut ends.
EPDM foam tubing with a Density of 18-22 lbs. |
||||
| Part Number | Inside Diameter (inches) | Recommended Bar Size (inches) | Wall Thickness (inches) | Length (inches) |
| D1E50M30-26 | 0.500 | 0.300 | 26 | |
| D1E63M30-26 | 0.625 | 0.300 | 26 | |
| D1E68M27 | 0.680 | 0.750 | 0.270 | UP TO 72 |
| D1E75M30-26 | 0.750 | 0.300 | 26 | |
| D1E80M37 | 0.800 | 0.880 | 0.370 | UP TO 72 |
| D1E88M30-26 | 0.875 | 0.300 | 26 | |
| D1E92M37 | 0.920 | 1.000 | 0.370 | UP TO 72 |
| D1E116M25 | 1.160 | 1.250 | 0.250 | UP TO 72 |
| D1E140M25 | 1.400 | 1.500 | 0.250 | UP TO 72 |
NPVC foam tubing with a density of 12-15 lbs. |
||||
| Part Number | Inside Diameter (inches) | Recommended Bar Size (inches) | Wall Thickness (inches) | Length (inches) |
| D1N50M26-26 | 0.500 | 0.260 | 26 | |
| D1N63M26-26 | 0.625 | 0.260 | 26 | |
| D1N63M27 | 0.630 | 0.750 | 0.270 | UP TO 72 |
| D1N63M37 | 0.630 | 0.750 | 0.370 | UP TO 72 |
| D1N75M26-26 | 0.750 | 0.880 | 0.260 | 26 |
| D1N75M27 | 0.750 | 0.880 | 0.270 | UP TO 72 |
| D1N75M37 | 0.750 | 0.880 | 0.370 | UP TO 72 |
| D1N88M26-26 | 0.875 | 0.260 | 26 | |
| D1N88M27 | 0.880 | 1.000 | 0.270 | UP TO 72 |
| D1N88M37 | 0.880 | 1.000 | 0.370 | UP TO 72 |
| D1N100M25 | 1.000 | 1.130 | 0.250 | UP TO 72 |
| D1N113M25 | 1.130 | 1.250 | 0.250 | UP TO 72 |
| D1N138M25 | 1.380 | 1.500 | 0.250 | UP TO 72 |
tpr tubing (minimums apply) |
||||
| Part Number | Inside Diameter (inches) | Recommended Bar Size (inches) | Wall Thickness (inches) | Length (inches) |
| D1T75D15 | 0.750 | 0.880 | 0.150 | Up to 72 |
| D1T88D15 | 0.880 | 1.000 | 0.150 | Up to 72 |
custom colors, sizes, and printing available for D1 style foam tubing on request. Contact your grip-tek sales agent at 888-345-2226 for a quote.
NPVC foam has excellent vibration dampening qualities and good weathering capabilities.
Low Density NPVC Foam
Extremely soft and flexible. Great for buffed grips or foam tubes. Thinner buffed grips function well on many low priced consumer applications.
Medium Density NPVC Foam
The perfect combination of softness and durability. It is commonly
used on a wide variety of applications.
High Density NPVC Foam
Harder and more durable. Used on many commercial grade products and industrial items.
tpr
TPR is constructed from polypropylene-based thermoplastic rubber and provides low-temperature flexibility.
